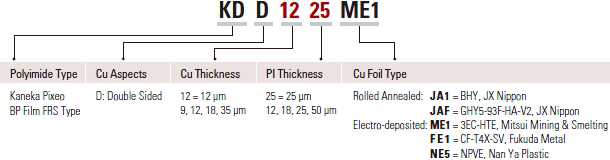

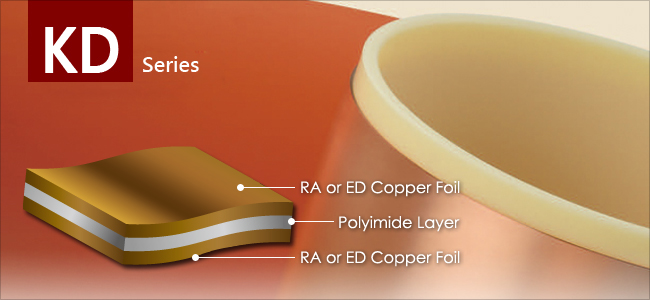

KD Series - Double Sided Flexible Copper Clad Laminates (FCCL), Flexible PCB


Scrolling the table to read more
Item Unit
KDD1212ME1
KDD1225ME1
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 3,000
> 2,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 3,000
> 2,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1825ME1
KDD1850ME1
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSA

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 1,000
> 100
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 1,000
> 100
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 4
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1225HE1
KDD1825HE1
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSA

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 2,000
> 1,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 2,000
> 1,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1212FE3
KDD1225FE3
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 2,000
> 1,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 2,000
> 1,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1225FE5
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
 DSC

Flame Resistance

 -
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 1,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 1,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1225JA1
KDD1825JA1
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 2,000
> 1,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 2,000
> 1,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃, 10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1225JA2
KDD1825JA2
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 2,000
> 1,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 2,000
> 1,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1250JAD
KDD1212JAE
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 0.7
> 0.8
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 100
> 5,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 100
> 5,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 4
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1225JAE
KDD1250JAE
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 0.7
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 3,000
> 200
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 3,000
> 200
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 4
 IPC-TM-650,
2.5.6.2



Item Unit
KDD0612JAF
KDD0625JAF
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 0.6
>0.7
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 6,000
> 3,000
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 6,000
> 3,000
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1225JAK
KDD1250JAK
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
> 300
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 2,000
> 100
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 2,000
> 100
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
> 5
 IPC-TM-650,
2.5.6.2



Item Unit
KDD1825JAK
 Test Method

Coefficient of Thermal Expansion

 ppm
18±4
 TMA

PL Glass Transition Temperature (TG)

 ℃
> 300
 DSC

Flame Resistance

 -
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within ±
0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within ±
0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 150
 IPC-TM-650,
2.4.19

Elongation

 %
> 45
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 1.0
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 500
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 500
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
 350℃,
10 sec

Surface Resistance

 Ω
>1014
 IPC-TM-650,
2.5.17

Flame Resistance

 Ω-cm
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 5
 IPC-TM-650,
2.5.6.2

Remark:

This information is based upon technical information believed to be reliable. However, no guarantee or warranty is expressed or implied with respect to the information herein.
  • Outstanding flexibilities
  • Immense mechanical strengths
  • Excellent dimensional stability
  • Excellent electrical performance
  • Excellent chemical resistance
  • Remarkable thermal stabilities
  • Excellent flame resistance
  • Low moisture absorption
  • Multiple copper foil choices

Configurations

  • Traditional flex circuits
  • High density flex circuits
  • Multi-layer rigid-flex wiring
  • Chip on film (COF) substrate
  • Chip scale packaging (CSP)
  • Ball grid array (BGA)
  • Tape automatic bonding (TAB)
  • PDP driver IC packaging



Designed by Machinetools Directory (S & J Corp.) Global Manufacturer Exhibition
AZOTEK CO., LTD.
  • No.10-1, Kungyeh 1st Rd., Guanyin Dist., Taoyuan City 328, Taiwan
