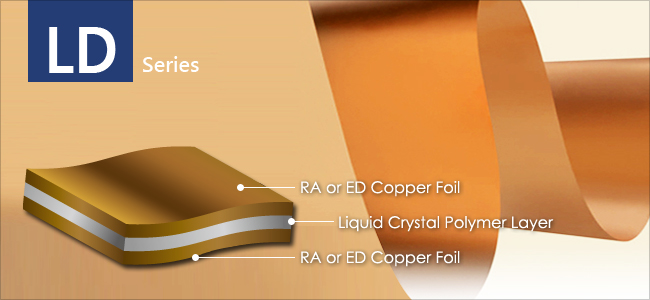

LD Series - Double Sided Flexible Copper Clad Laminates (FCCL), Flexible PCB


Scrolling the table to read more
Item Unit
LDD1250ME1
LDD1250JAB
 Test Method

Melting Point

 ℃
335±5
335±5
 DSC

Flame Resistance

 -
VTM-0
VTM-0
 UL 94

Dimensional Stability (MD)

 %
within
± 0.08
within
± 0.08
 IPC-TM-650,
2.2.4

Dimensional Stability (TD)

 %
within
± 0.08
within
± 0.08
 IPC-TM-650,
2.2.4

Tensile Strength

 MPa
> 250
> 250
 IPC-TM-650,
2.4.19

Elongation

 %
> 40
> 40
 IPC-TM-650,
2.4.19

Peeling Strength

 kN/m
> 0.7
> 0.7
 JIS C-5016

Flexural Endurance (MIT) (MD)

 Cycles
> 100
> 100
 JIS C-6471

Flexural Endurance (MIT) (TD)

 Cycles
> 100
> 100
 L/S=1.0 mm,
R=0.8 mm

Soldering Resistance

 -
PASS
PASS
 315℃, 10 sec

Surface Resistance

 Ω
>1014
>1014
 IPC-TM-650,
2.5.17

Volume Resistivity

 Ω-cm
>1014
>1014
 IPC-TM-650,
2.5.17

Dielectric Strength

 kV/mil
> 4
> 4
 IPC-TM-650,
2.5.6.2

Dielectric Constant
(5 GHz)

 -
2.8
2.8
 IPC-TM-650-2.5.5.3

Dissipation Factor
(5GHz)

 -
0.002
0.002
 IPC-TM-650-2.5.5.3



Remark:

This information is based upon technical information believed to be reliable. However, no guarantee or warranty is expressed or implied with respect to the information herein.
  • Outstanding flexibilities
  • Immense mechanical strengths
  • Excellent dimensional stability
  • Excellent electrical performance
  • Excellent chemical resistance
  • Remarkable thermal stabilities
  • Excellent flame resistance
  • Low moisture absorption
  • Multiple copper foil choices

Configurations


  • Traditional flex circuits
  • High density flex circuits
  • Multi-layer rigid-flex wiring
  • High frequency transmission circuits
  • High speed transmission circuits
